Microduct egeGreen Line

Protective duct made from up to 100% recycled PE
The egeplast Microduct egeGreen Line series consists of up to 100% high-quality recyclates from in-house PE regranulation, which are equivalent in functionality and quality to fiber optic protection pipes manufactured with virgin PE.
Minimum 50-year lifespan
100% qualified recyclate from our own PE regranulation

Your benefits at a glance

100% qualified recyclate from our own PE regranulation

Highest quality, lowest ecological footprint

Available in various versions

Core, Sheath, Ultimate, and Custom

Connectable to existing networks

Compatible with all components within a fiber optic infrastructure

Minimum 50-year lifespan

Suitable for open-trench and trenchless installation methods
Optional: available as ProTec variant

Optionally available as ProTec variant

Variants

Microduct MultiegeGreen Line Core

Duct bundles with core ducts made from recyclates

Microduct Multi  egeGreen Line Sheath

Duct bundles with sheath made from recyclates

Microduct Multi  egeGreen Line Ultimate

Duct bundles made entirely from recyclates

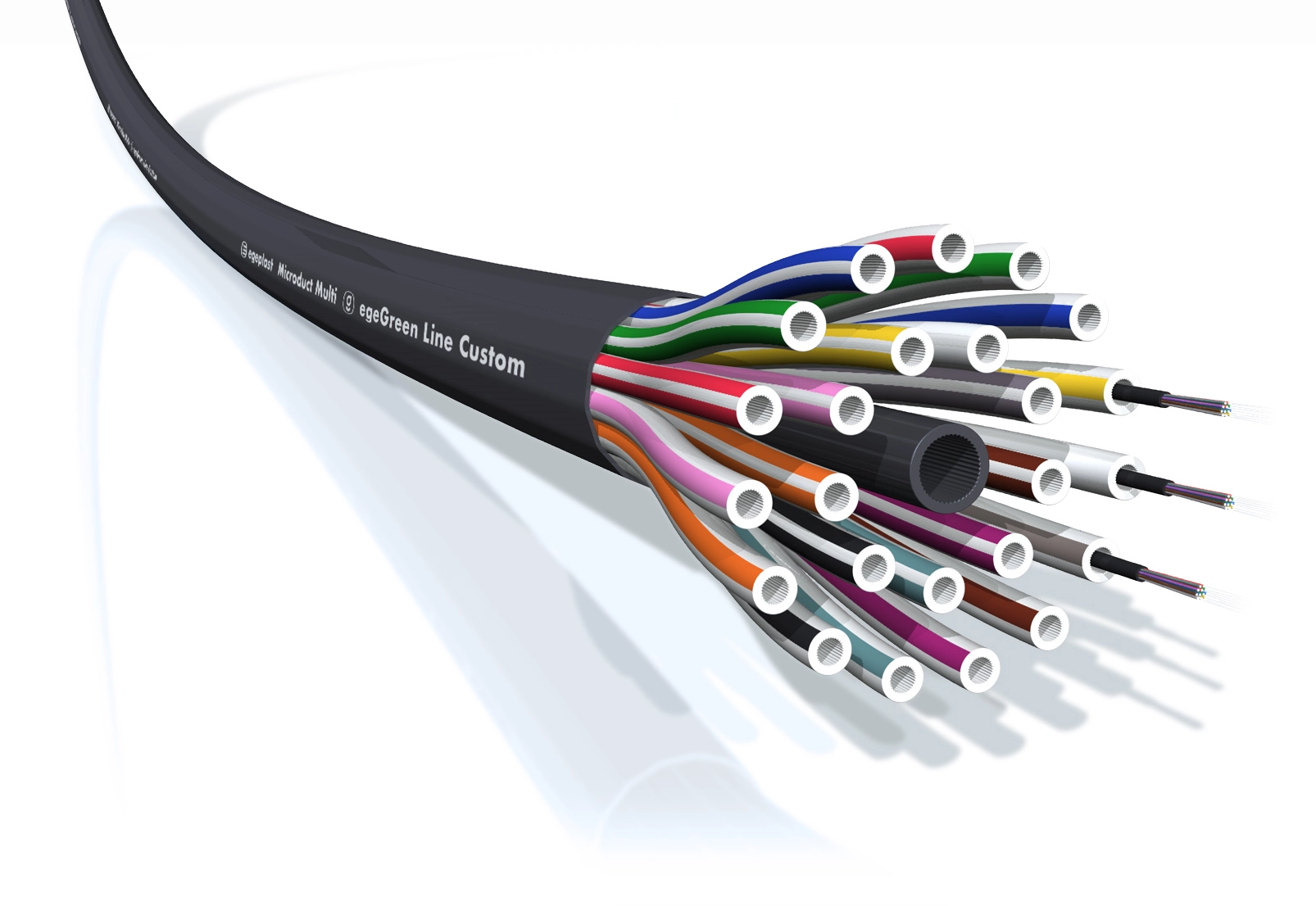

Microduct Multi  egeGreen Line Custom

Duct bundles with individual elements made from recyclates

Technical data

Application:
Protection of fiber optic cables in network applications such as FTTH, FTTB, FTTC (Fiber To The Home/Building/Curb) or Last Mile
Material:
100% Polyethylene
Limits:
Bundling of max. 25 mono pipes
Dimension:
All common dimensions available. Please contact us.
Approvals / Standards:
According to DIN 16874, mechanical requirements according to VDE (Guideline Part 720 Material Concept for FttX Broadband Networks)
Delivery form:
Drum

Installation Options for
Microduct egeGreen Line

Open Construction / New Installation

In the sand bed

Simple and safe new installation by bedding the pipe in sand
Advantages

Insertion into protective pipes
Flexible solution for the Installation of microducts in existing pipe networks
Advantages

Pulling into Conduits
Flexible solution for the installation of microducts in existing pipe networks
Advantages

References & Project reports

Our systems have proven themselves over decades in numerous projects. Discover our project reports.

Other relevant products

Our systems offer reliable solutions for the entire range of telecommunications infrastructure – from standard installations to demanding special applications.
Sustainable solutions for modern fibre optic networks

Microduct egeGreen Line - Highest quality made from up to 100% recyclate

Sustainability in the supply chain is an important decision criterion for grid operators and investors when expanding fibre optic networks. The focus is on installation methods that are as environmentally friendly as possible while using sustainable materials.

With the Microduct egeGreen Line, egeplast offers a product range that combines ecological responsibility with technical performance. The protective conduits are manufactured from up to 100% high-quality recyclate from our own PE regranulation. They are suitable for resource-efficient installation methods .

egeGreen Line is made from up to 100% high-quality recyclates, reducing the CO₂ footprint compared to conventional products

By using recycled plastics, fossil raw materials are conserved without compromising product quality

egeGreen Line meets all relevant standards and norms for microduct systems and matches the PE version made from virgin material in terms of functionality and quality

Against the backdrop of increasingly scarce primary resources,
egeplast demonstrates how a closed-loop
recycling cycle in plastics processing
can be successfully achieved. 3R also reported on this:

3R reported on this: Sustainable protection for fibre optics without any loss of quality
