Accessories for Telecommunications Cable Protection
The egeplast egeFit® system accessories for telecommunications cable protection comprise a comprehensive range of components and installation technology perfectly tailored to the diverse requirements of modern telecommunications networks. Our accessories ensure optimal connection, sealing, and installation of microduct and cable protection systems as well as their long-lasting operation.
Fittings and Accessories
Connectors
Reducers
End Plugs
Gas Blockers
Blowing Coupling (EBM)
Single Cable Seal - Splittable (EZA-t)
Multi-fit Seal - Splittable (MfA-t)

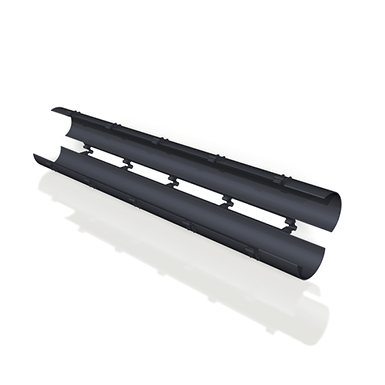

Protection Couplings

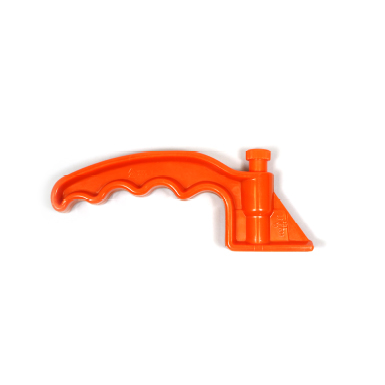

Tools

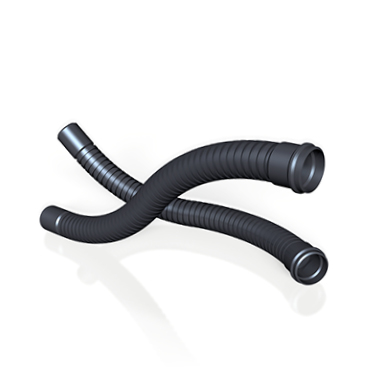

Flex Bend
Click-fix

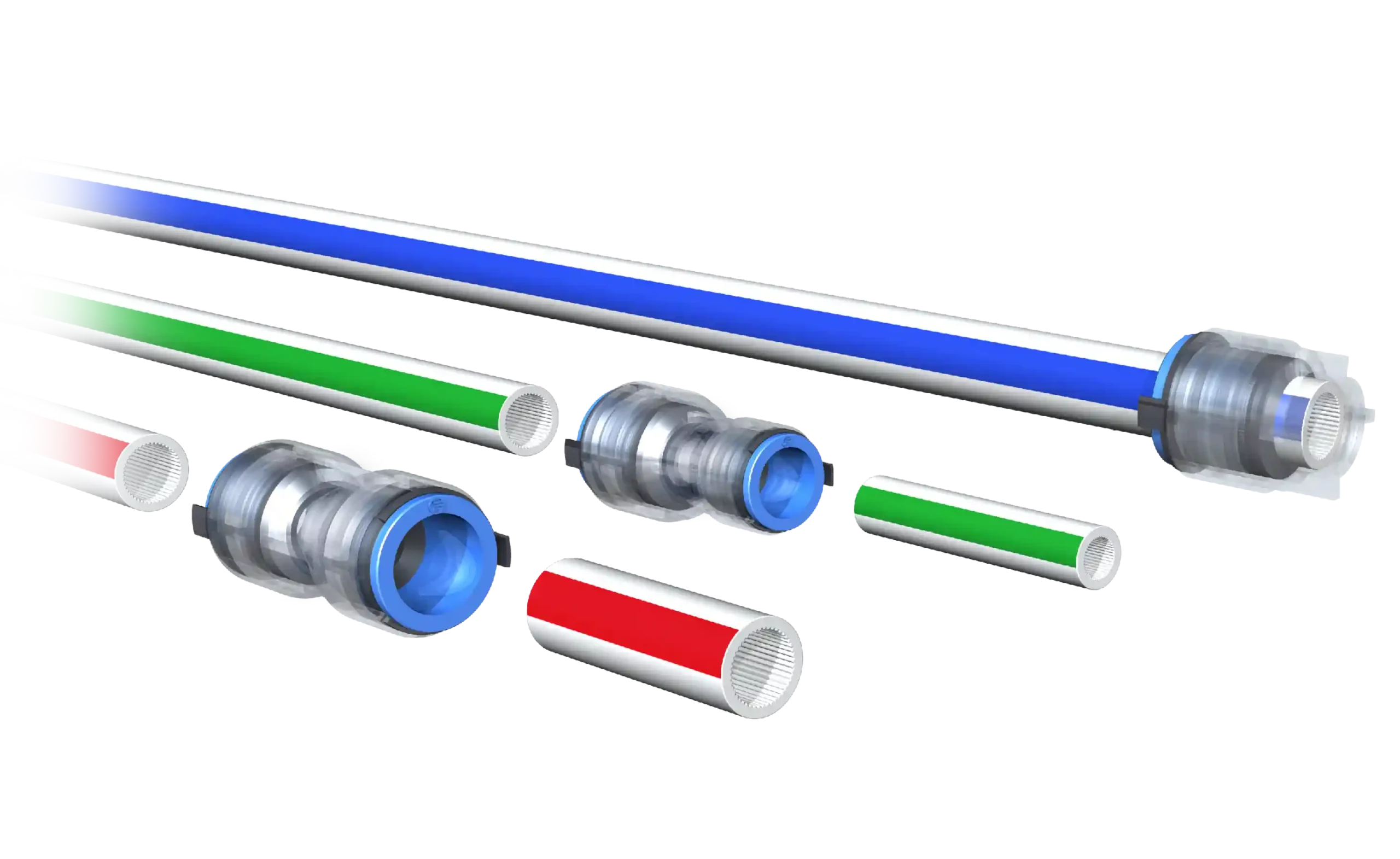

Connectors, Reducers and End Plugs
Dimensions:
OD 7 - 20 mm
Compliant with DIN EN 50411-2-8
Increased safety through proven spade test
Resistant to acids, salts and alkalis
Water and pressure tight up to 16 bar
Increased pull-out resistance
Reusable
Transparent plastic body for visual verification of correct installation
Simple installation by pushing in until stop with defined pressure point
Metal claw made of stainless steel
Impact-resistant plastic
Gas Blockers
Gas-tight seal between microduct mono pipes and cables of all common diameters
Dimensions:
OD 7 - 16 mm
Compliant with DIN EN 50411-2-8
Water and pressure tight up to 0.5 bar
Simple sealing with screw cap

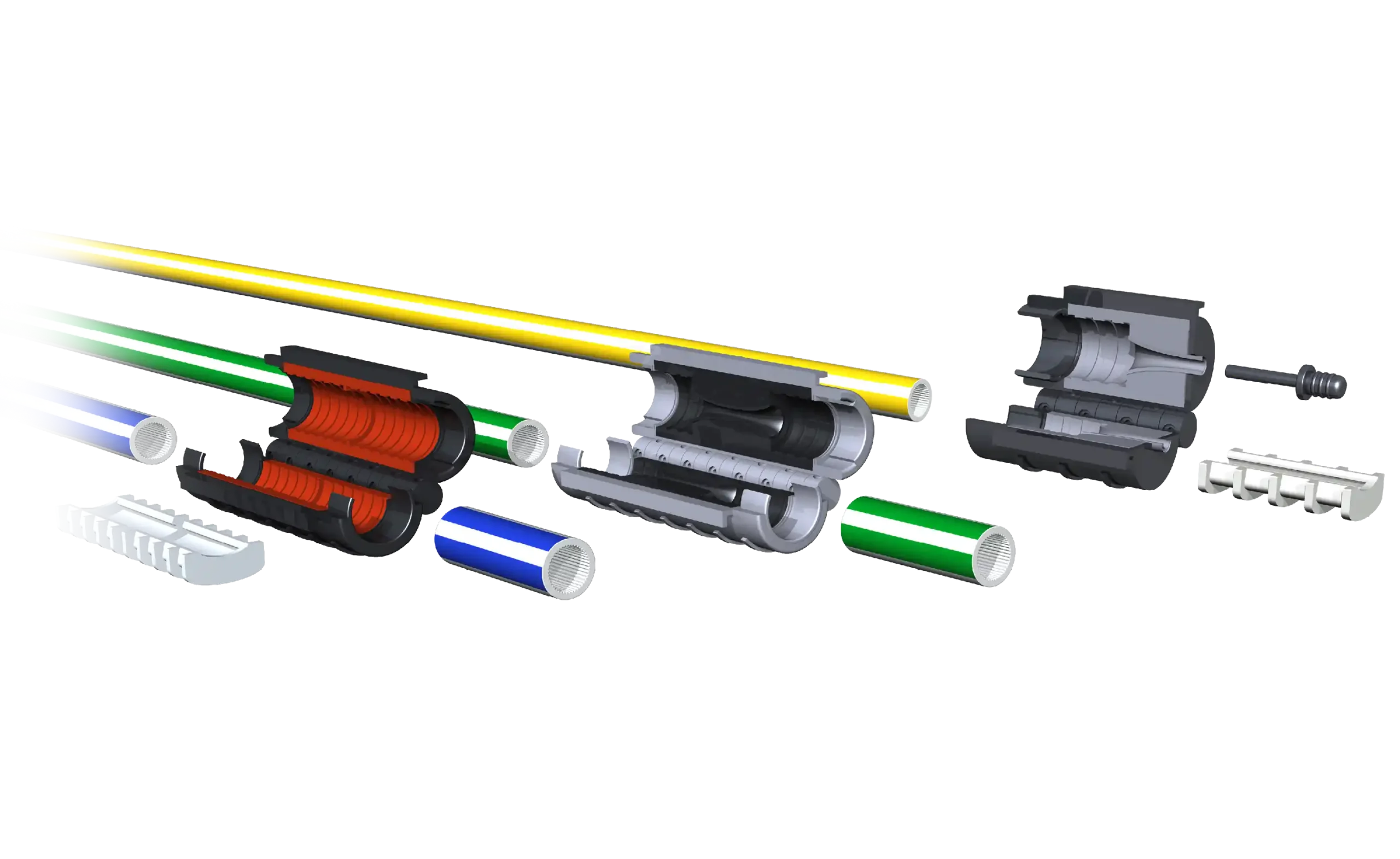

Blowing Couplings and Single Cable Seals - Splittable
For subsequent sealing of occupied microducts
Reusable
Blowing coupling with gas stop (EBM-GS): Water and pressure tight up to 0.5 bar
High pull-out resistance
Simple and fast installation without tools
Suitable for underground installation

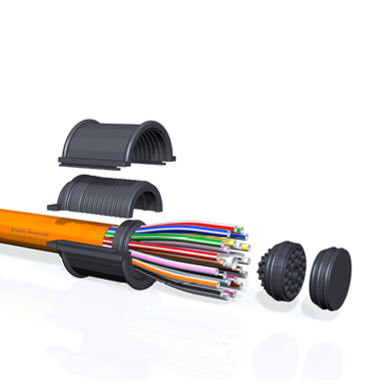

Multi-fit Seals
For gas and water-tight sealing between individual microducts and the surrounding jacket or protective pipe
Simple installation
Stress-free and fixed inner pipes in the sealing element
No risk of incorrect installation
Permanent pressure tightness up to 0.5 bar
Splittable and reusable
