egeLiner®

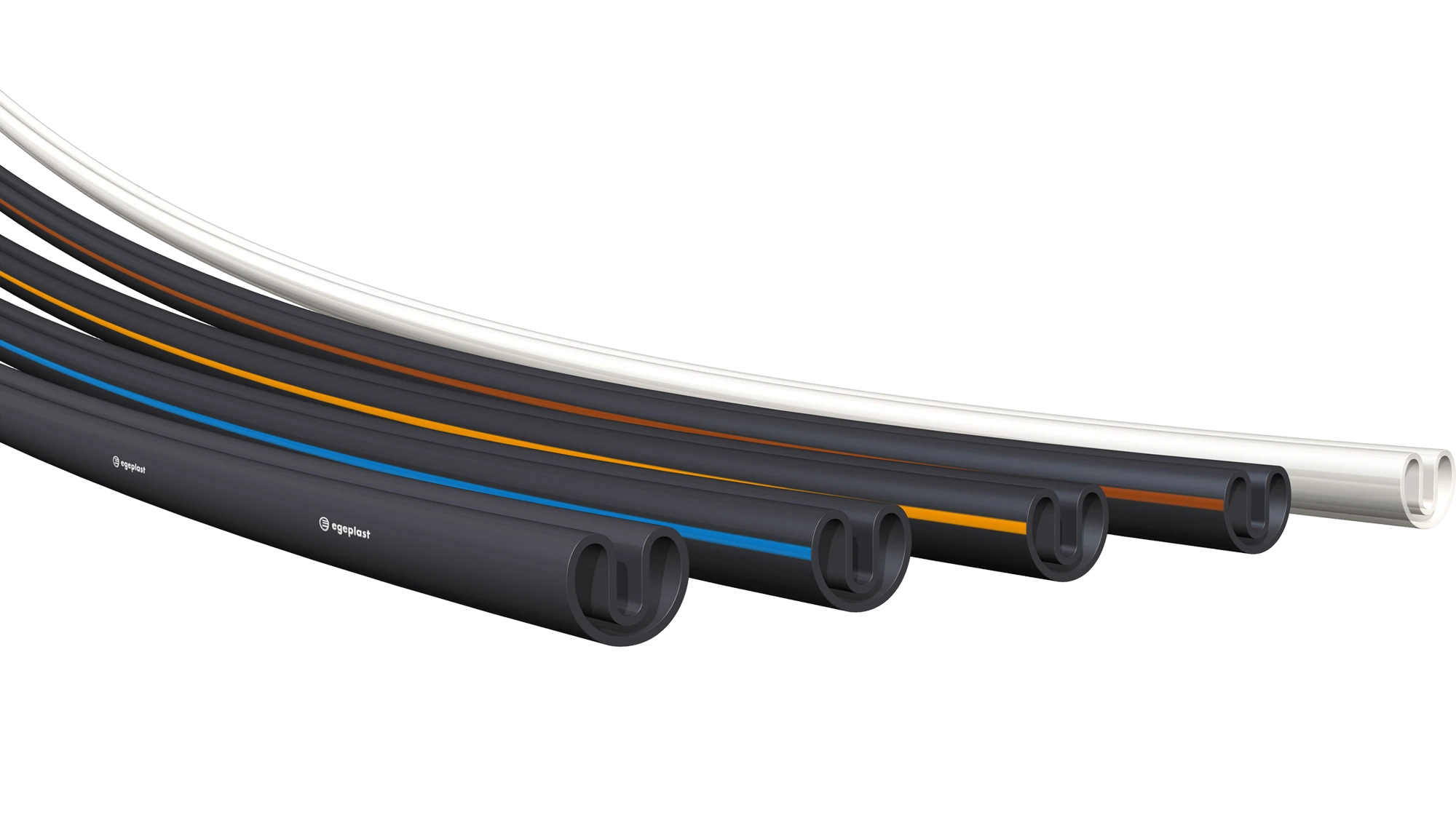

Pre-deformed PE pipes for Close-Fit Lining

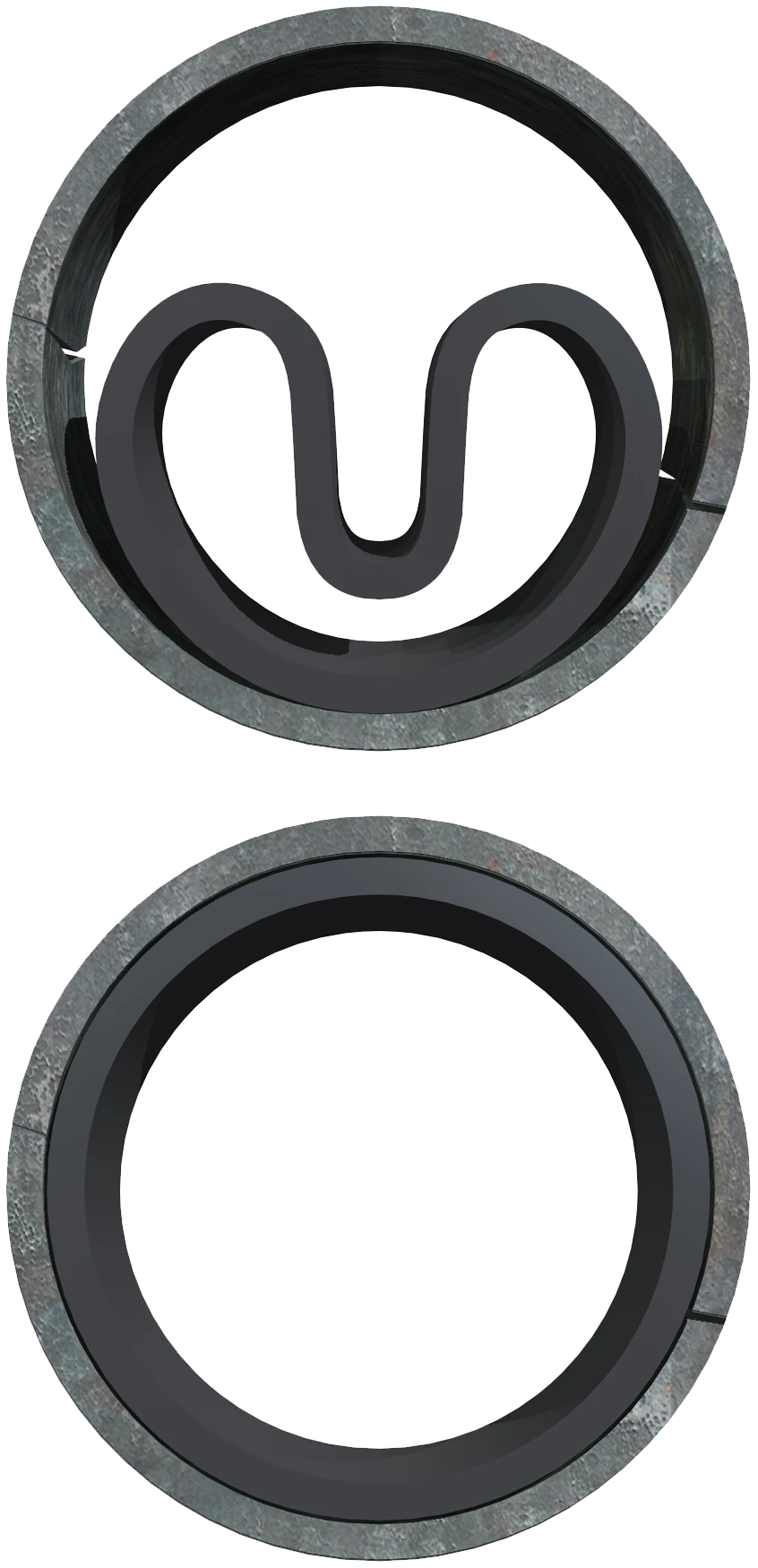

The egeLiner® enables space-saving and efficient rehabilitation of existing pipelines. Thanks to its memory effect, a statically self-supporting PE pipe is formed after insertion, which fits tightly against the old pipe.
Optimal Close-Fit solution for maximum hydraulic capacity and long-term stability
Ideal for confined construction site conditions due to reduced transport and installation dimensions
Your benefits at a glance
Close-Fit rehabilitation with a factory-produced and tested pipe system
The egeLiner® forms a positive fit with the old pipe and creates a new, sealed pipe system – without an annular gap and with self-supporting static properties.
Minimal space requirement on the construction site
The compact, pre-deformed pipe geometry enables work even in confined spaces – ideal for inner-city areas.
Cost-efficient construction method without excavation
Insertion via small excavation pits or existing shafts significantly reduces civil engineering costs, construction time, and traffic disruptions.
Hydraulically optimized
Low cross-section loss and a smooth inner surface ensure high flow performance and long-term operational efficiency.
Factory-produced pipe
The factory-produced and quality-tested pipe guarantees safe and long-term operation.
Construction site video
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More Information
Technical data
Dimension:
OD 145 – 500 mm
SDR:
Pressure pipes: SDR 17 (DN 500 in SDR 21)
Pressureless applications: SDR 26, SDR 17 (DN 500 in SDR 21)
Application:
Drinking water | Gas | Wastewater (pressure pipe applications and pressureless applications) | Industrial media
Pipe structure / Design:
Continuous pipe string with factory-thermomechanically deformed cross-section reduction
Color:
Black or black with colored stripes for media identification; natural (pressureless applications only)
Material:
PE 100-RC
Product standards:
Drinking water: DVGW | NPM (Drinking water) | DIN EN ISO 11298 | based on DVGW GW 335 | EN 12201
Gas: DVGW | DIN EN ISO 11299 | based on DVGW GW 335 | EN 1555
Wastewater (pressure): DIN EN ISO 11297 | EN 12201
Wastewater (pressureless): DIN EN ISO 11296
Delivery forms:
Special drum | Length depending on dimension
Installation options for
egeplast egeLiner®
References & Project reports
Our systems have proven themselves over decades in numerous projects. Discover our project reports.
egeLiner®
Sustainable Pipe Rehabilitation of Sewer Lines with egeLiner® Using the Close-Fit Method
egeLiner®
Efficient and Sustainable Pipe Rehabilitation through the Installation of Pre-Shaped Pipes Using the Close-Fit Method
egeLiner®
Close-Fit Lining in Hötensleben: Esders Pipeline Service Rehabilitates Main Water Pipeline
egeLiner®
New Water Supply for Hong Kong Government Building – Rapid Rehabilitation in Confined Spaces Thanks to egeplast egeLiner®
Other relevant products
Our systems cover the entire spectrum of drinking water supply – up to safety-critical special applications:
