SLM® DCS
Early warning system for monitoring critical infrastructure
The SLM® DCS detects potential damage early and enables its reliable localization – for maximum safety throughout the pipeline's lifespan.
Reliable information on the condition of the pipeline
Prevention of soil contamination and consequential damage
Your benefits at a glance
Early warning system & quick response
Damage is detected early, and automatic measures prevent major failures and costly repairs.
Legally compliant & sustainable
Meets all requirements for sensitive environmental protection zones and protects resources – economically and environmentally friendly.
Simple & safe Installation
The additive protective layer enables trenchless installation and integrity testing.
Complete system from a single source
egeplast offers a complete system, including fittings and accessories, for maximum operational reliability and cost-effectiveness.

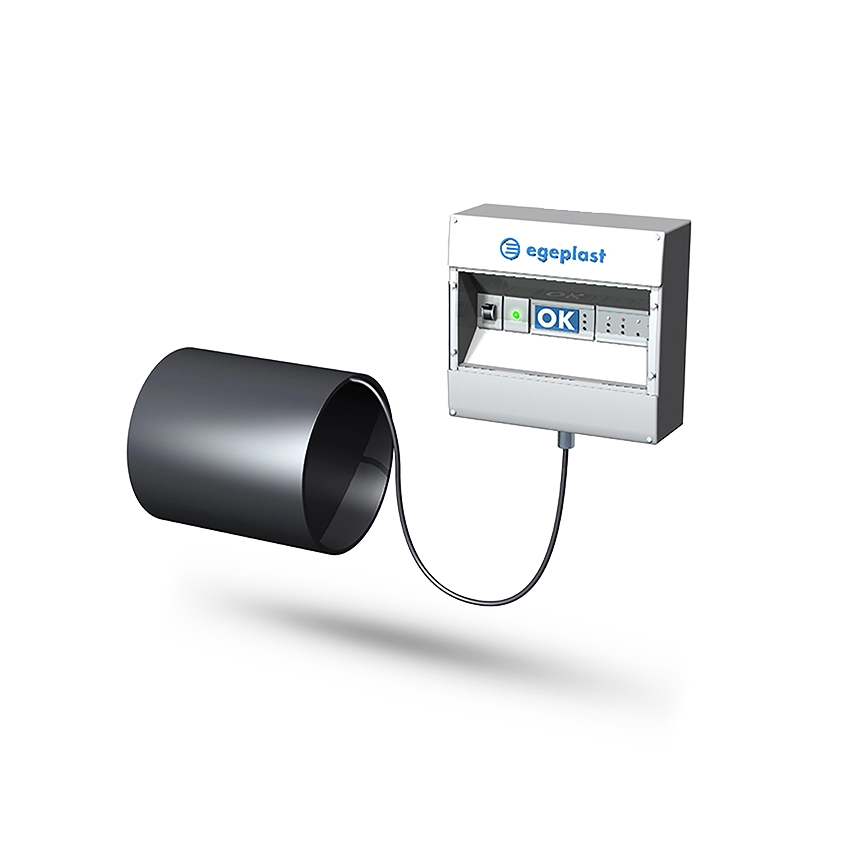

Flexible leakage monitoring
Optionally permanent monitoring or battery-powered interval monitoring.
Construction site video
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More Information

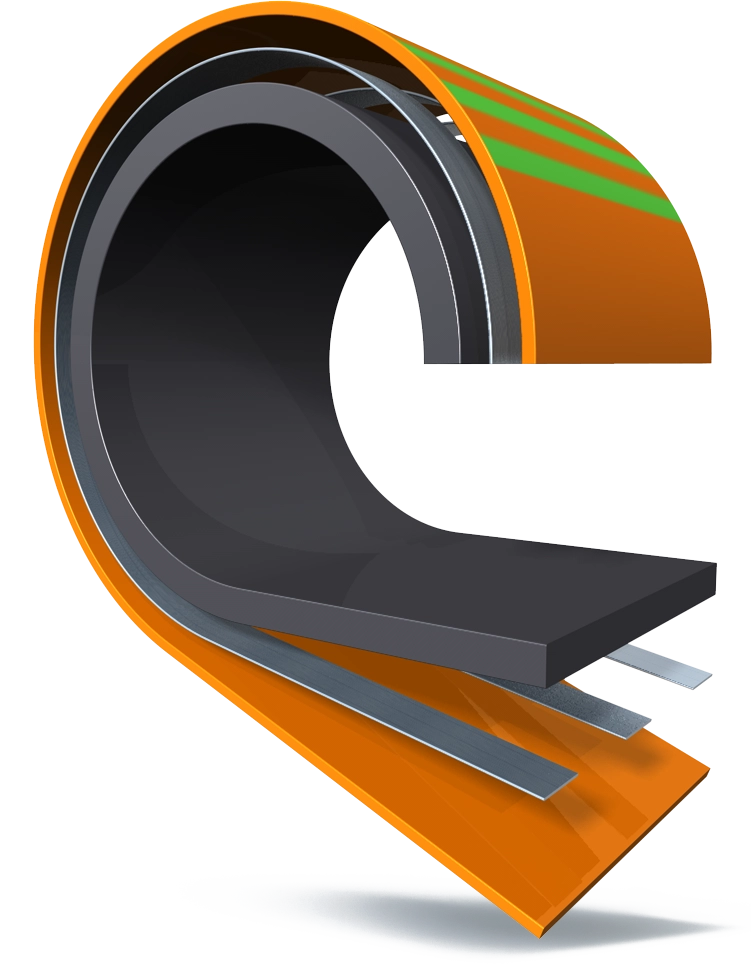

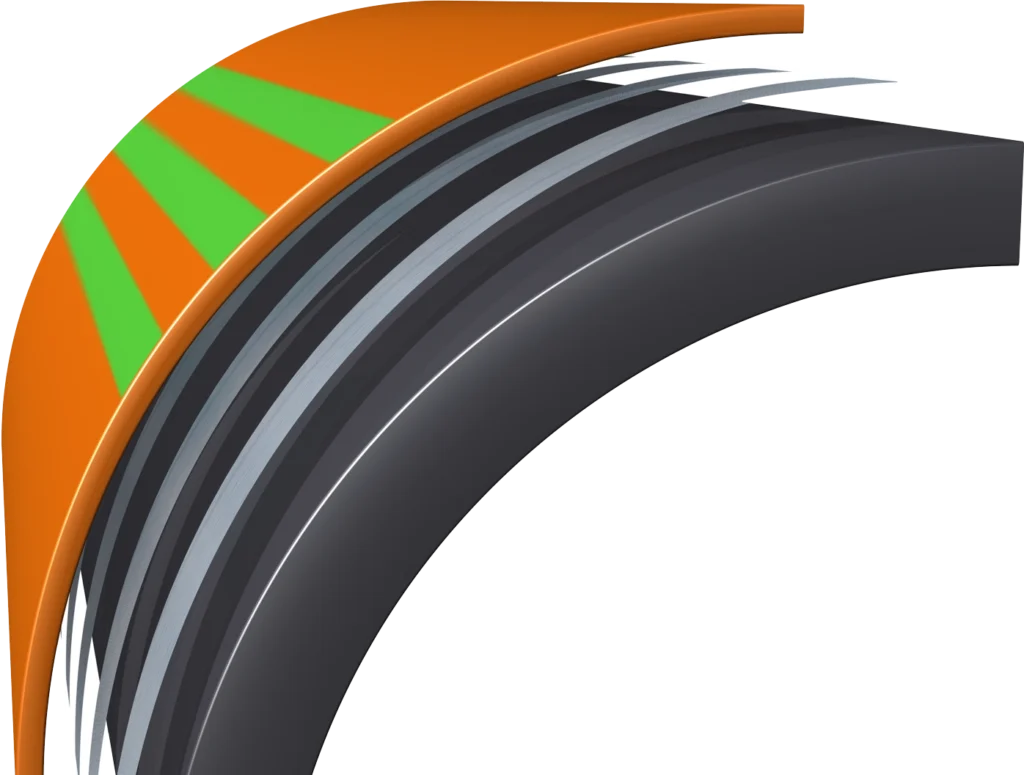

Additive protective layer made of PEplus
electrical marker tapes for damage location
and function monitoring
Core pipe made of PE 100-RC
Technical data
Dimension:
OD 25-630 mm
SDR:
SDR 7.4 | 9 | 11 | 13.6 | 17 (others on request)
Application:
Wastewater | Industrial Media
Pipe structure / Design:
Medium pipe: black, PE 100-RC
Protective jacket: modified polyethylene PEplus, brown color (for identification for wastewater/industry)
Protective jacket: modified polyethylene PEplus, brown color (for identification for wastewater/industry)
Product standards:
DIN 8074/75 | EN 12201
Testing and certification:
TÜV SÜD MUC-KSP-A 3003
Delivery forms:
Rods of 6, 12, or 20 m | Coils of 100 m | other lengths on request | Drums according to customer requirements
Installation options for
SLM® DCS
Trenchless Installation / New Laying
Horizontal Directional Drilling (HDD)
New laying with minimal impact on the environment and traffic infrastructure
Advantages
Trenchless Construction / Rehabilitation
Relining
Rehabilitation of defective pipelines by pulling in a new pipe
Advantages
Trenchless Construction / Rehabilitation
Pipe Bursting
Rehabilitation by bursting of the old pipe with potential upsizing
Advantages
Trenchless Construction / New Installation
Soil Displacement
Ideal for short, trenchless installation distances and house connections
Advantages
Low-Trench Construction / New Installation
Plowing Method
Low-trench new installation, especially for long routes in rural areas
Advantages
Low-Trench Construction / New Installation

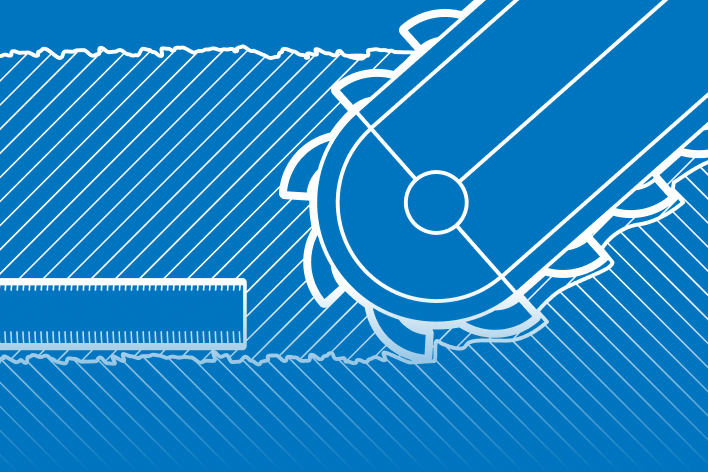

Milling Method
Low-Trench New Installation with Minimal Surface Disruption and Narrow Trenches
Advantages
Open Construction / New Installation
In the sand bed
Simple and safe new installation by bedding the pipe in sand
Advantages
Open trench / New installation
Without sand bedding
New installation with reuse of the excavated soil
Advantages
Innovative Installation Techniques
Learn more here about the diverse options for plastic pipe installation.
Learn moreReferences & Project reports
Our systems have proven themselves over decades in numerous projects. Discover our project reports.
SLM® DCS
Smart Pipe Systems as a Key to Resilient Infrastructures – Safe. Sustainable. Future-proof.
SLM® DCS
Monitored Irrigation System in Verona
SLM® DCS
Plastic Pipe Systems for Successful Risk Management in the Water Industry
SLM® DCS

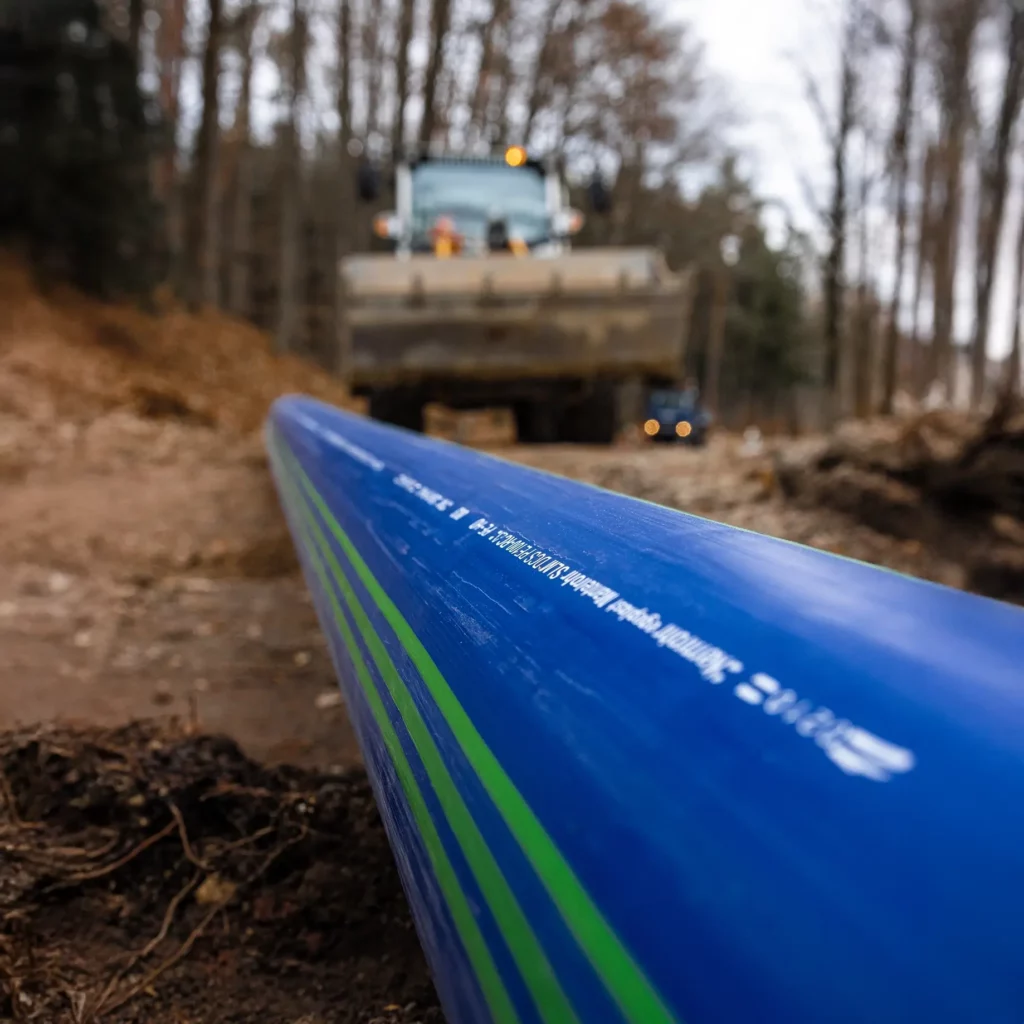

Monitored Drinking Water Transmission Pipeline in Lichtenfels

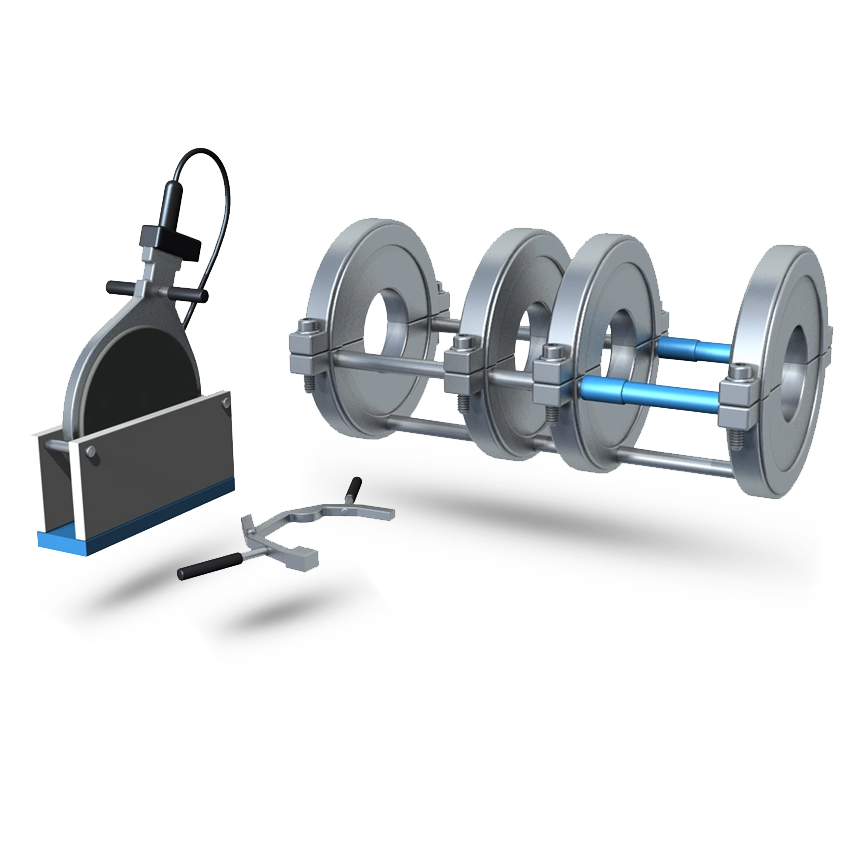

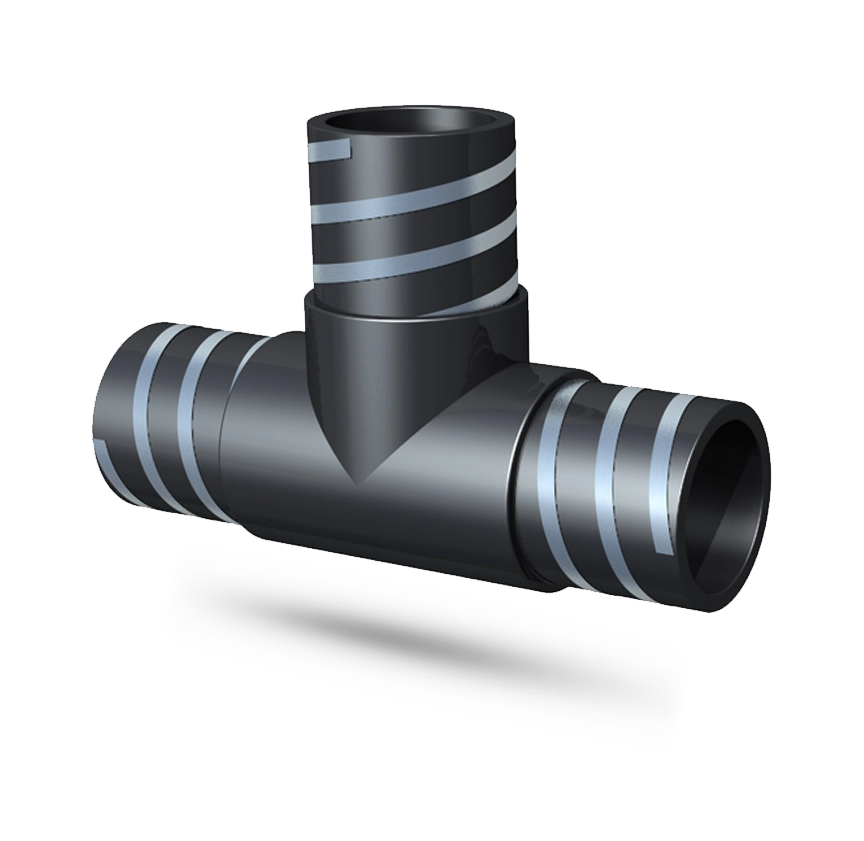

egeFit® Fittings and accessories
System-matched fittings and accessories are available for the SLM® DCS: including customized fittings according to customer requirements, as well as PreFab special constructions – pressure-rated and precisely fitting.
Other relevant products
Our solutions for wastewater technology offer a comprehensive spectrum – from standard installations to proven demanding applications in safety-critical areas.
