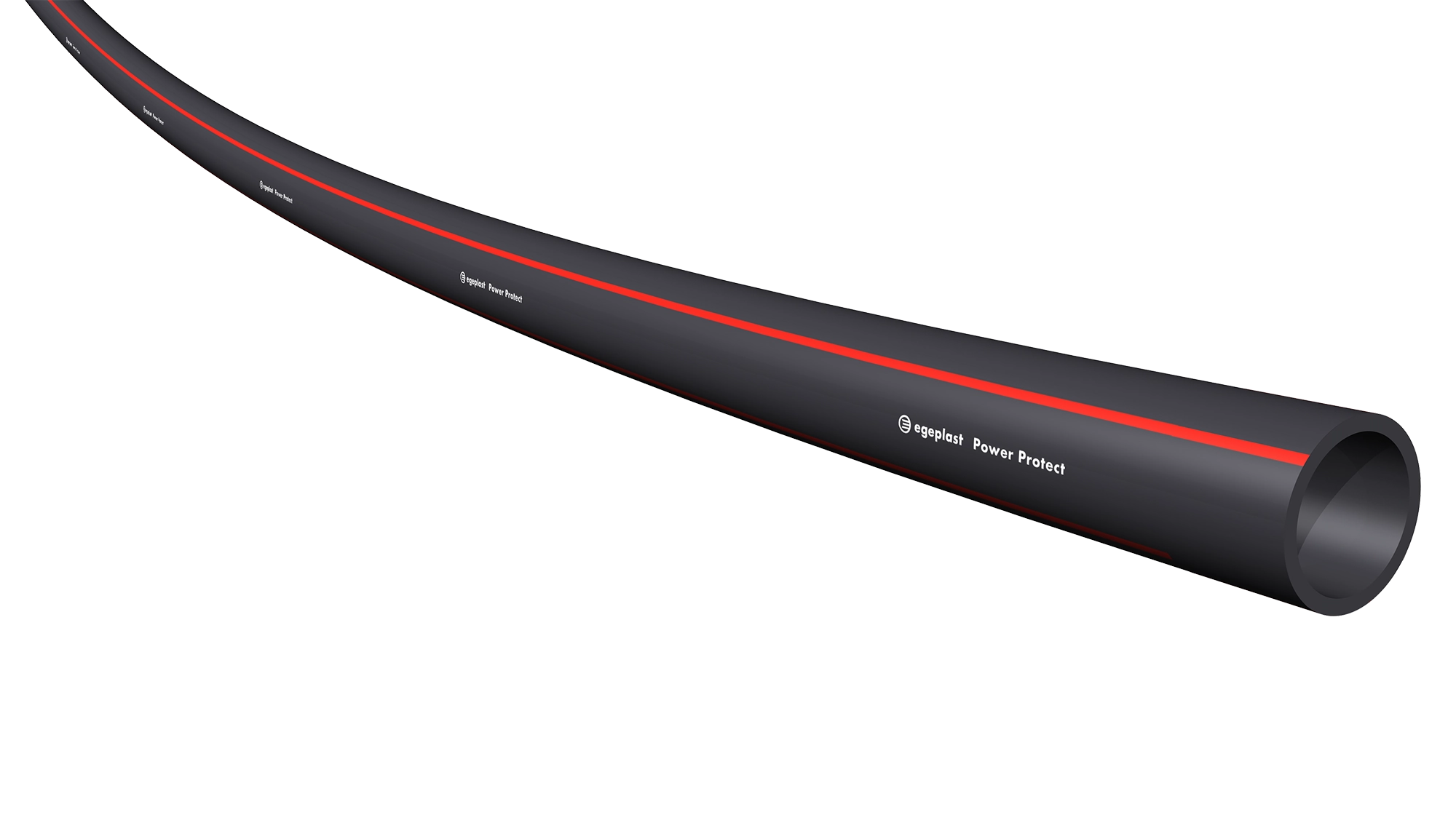

egeplast Power Protect PE
Protective pipes for medium-voltage and power cables up to 110 kV
The egeplast Power Protect, made of polyethylene, is used for energy cables up to 110 kV.
Available for power cables as multi-layer pipe and solid-wall pipe
Comply at least with the requirements of DIN 16874
Pipes can be connected mechanically, by electrofusion couplers, and by butt welding procedures.
Your benefits at a glance
Operating temperature range
-10°C to +40°C with short-term peaks up to +60°C.
Higher temperature resistance required? Refer to PE-RT Wide range of delivery forms and lengths
Coils, drums, or straight lengths
Variety of connection techniques
Do you require a material-bonded connection? Our pipes can be connected by push-fit as well as by electrofusion or butt welding.
SKZ Certification
Certified pipe production according to DIN 16874
Individually Configurable
- Standard color black, but also available with color stripes or a colored outer layer
- Individual customer marking possible
- Individual customer marking possible
Also suitable as a protective pipe for other applications
- Flushing line
- Protective pipe for HDD applications for subsequent installation with egeplast Microduct Multi bundles
- Protection of ancillary media
- Protective pipe for HDD applications for subsequent installation with egeplast Microduct Multi bundles
- Protection of ancillary media
Technical data
Medium:
Power and energy cables, control cables, telecommunication cables
Material:
Pressure pipe quality based on DIN 8074 (PE100) or PE-HD according to DIN 16874; Optional: Stress crack resistant
SDR:
SDR 21 - SDR 7.4 (others upon request)
Dimension:
75 - 1200 mm
Approvals / Standards:
DIN 8074/75 - DIN 16874
Delivery forms:
Coils, drums | Large drums upon request, straight lengths (6, 12, 15 or 20 m) | Special lengths up to 30 m | Pre-assembly | Telescoping for container loading
Installation options for
Power Protect PE
Trenchless Installation / New Laying
Horizontal Directional Drilling (HDD)
New laying with minimal impact on the environment and traffic infrastructure
Advantages
Low-Trench Construction / New Installation
Plowing Method
Low-trench new installation, especially for long routes in rural areas
Advantages
Low-Trench Construction / New Installation
Milling Method
Low-Trench New Installation with Minimal Surface Disruption and Narrow Trenches
Advantages
Open-Cut Installation / New Installation
Pipe Laying Sled
Efficient new installation by combining several work steps during the installation of the protective pipes
Advantages
Trenchless Installation / New Laying
E-Power Pipe
Innovative method for trenchless installation over long distances
Advantages
Open trench / New installation
Without sand bedding
New installation with reuse of the excavated soil
Advantages
Open Construction / New Installation
In the sand bed
Simple and safe new installation by bedding the pipe in sand
Advantages
References & Project reports
Our systems have proven themselves over decades in numerous projects. Discover our project reports.
Power Protect PE
Rhine crossing A-Nord: egeplast Power Protect pipes secure the DC route beneath the dike and the Rhine
Power Protect PE
Suedlink: TransnetBW Again Opts for egeplast Power Protect
Power Protect PE
egeplast Power Protect Pipes Protect New High-Voltage Cable from Bayernwerk
Power Protect PE
Professional Handling of a Major Project Using the A-Nord Example – Underground Cable Route Currently in Full Operation
egeFit® Fittings and accessories
System-matched fittings and accessories are available for the Power Protect PE: including customized fittings according to customer requirements, as well as PreFab special constructions – pressure class compliant and precisely fitting.
Variants
The Power Protect is available in various versions in addition to PE
Power ProtectDIN 16874
Protection for buried cables
Power ProtectPE 100
Ideal for thicker wall thicknesses and increased demands
Power ProtectPE 100-RC
When increased stress crack resistance is required
Power ProtectPE 100-RT
Ideal for protecting cables up to 525kV
